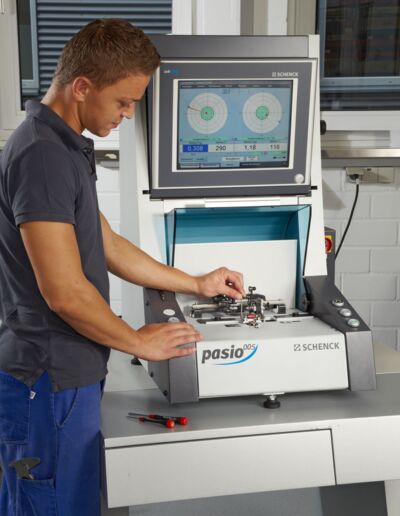

Universal balancing machine for rotors up to 50 g Pasio 005 - Schenck Brasil

  • Compact design
  • Small space requirement
  • Fast and uncomplicated set up
  • Installation without foundations
  • Highest measuring accuracy through soft bearing principle
  • Ergonomic operator concept
  • Suitable for magnetized rotors

Special features

Space-saving single-unit design with integral measuring station and measuring unit
Correction in two planes or separate according to static and couple unbalance is possible
Rotors can be mounted on their original shafts or on mounting arbors
Automatic measuring cycle with infinitely variable settings for acceleration, measuring and braking time.
Design

Range of application

Universal balancing machine Pasio 005 is ideally suited to extremely small work-pieces such as miniature armatures, dental turbines, micro rotors of the watch and photo industrie. They are conceived for use in research and development, in batch production or in repair shops.

Change-over to new rotor types is straightforward and only requires a minimum of time.

Unbalance correction is made manually by addition of material (e.g. balancing plasticine) directly on the machine or by removal of material on optional manually operated or semi-automated machining units.

Design

  • Soft-bearing, horizontal balancing machine for standing or seated operation

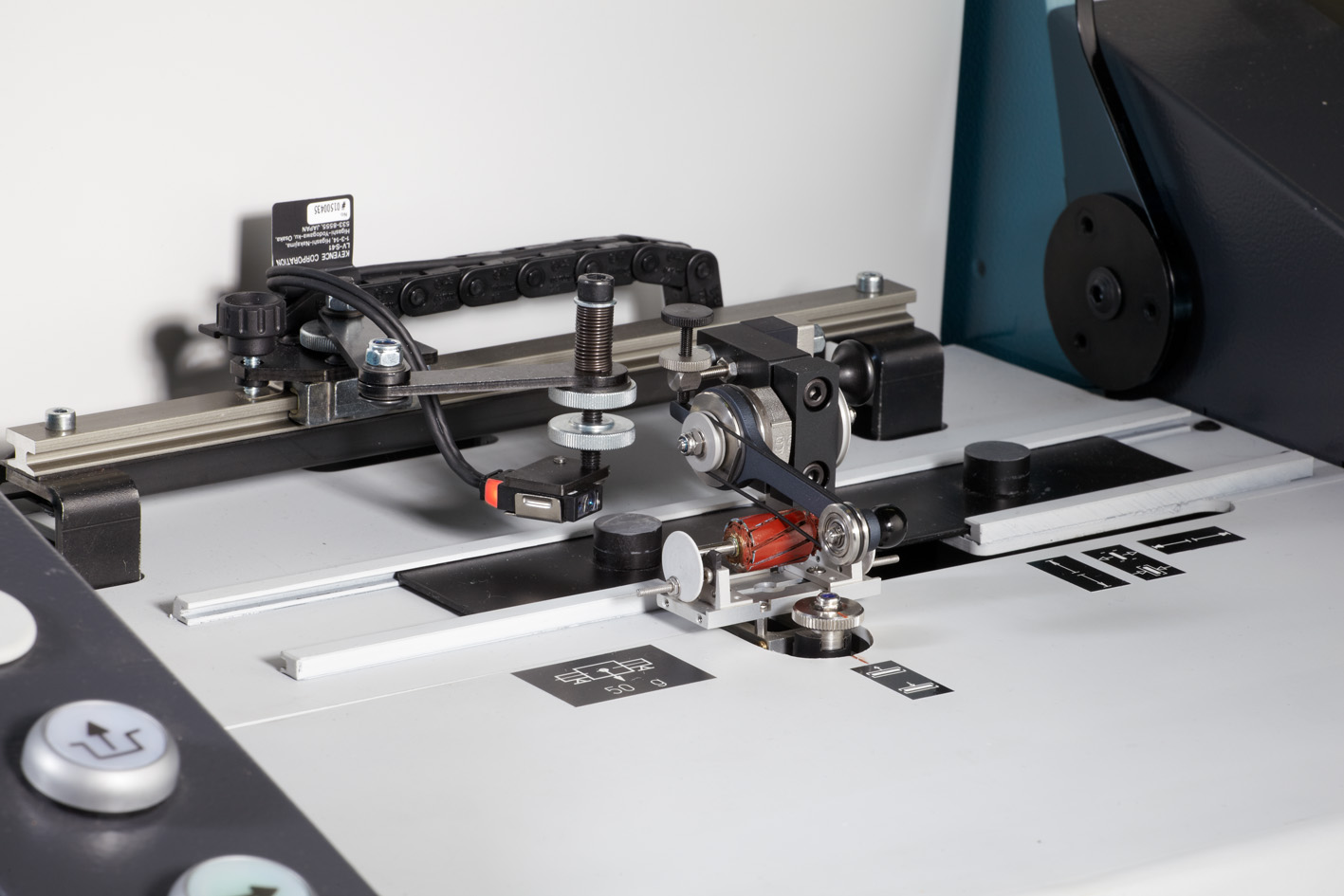

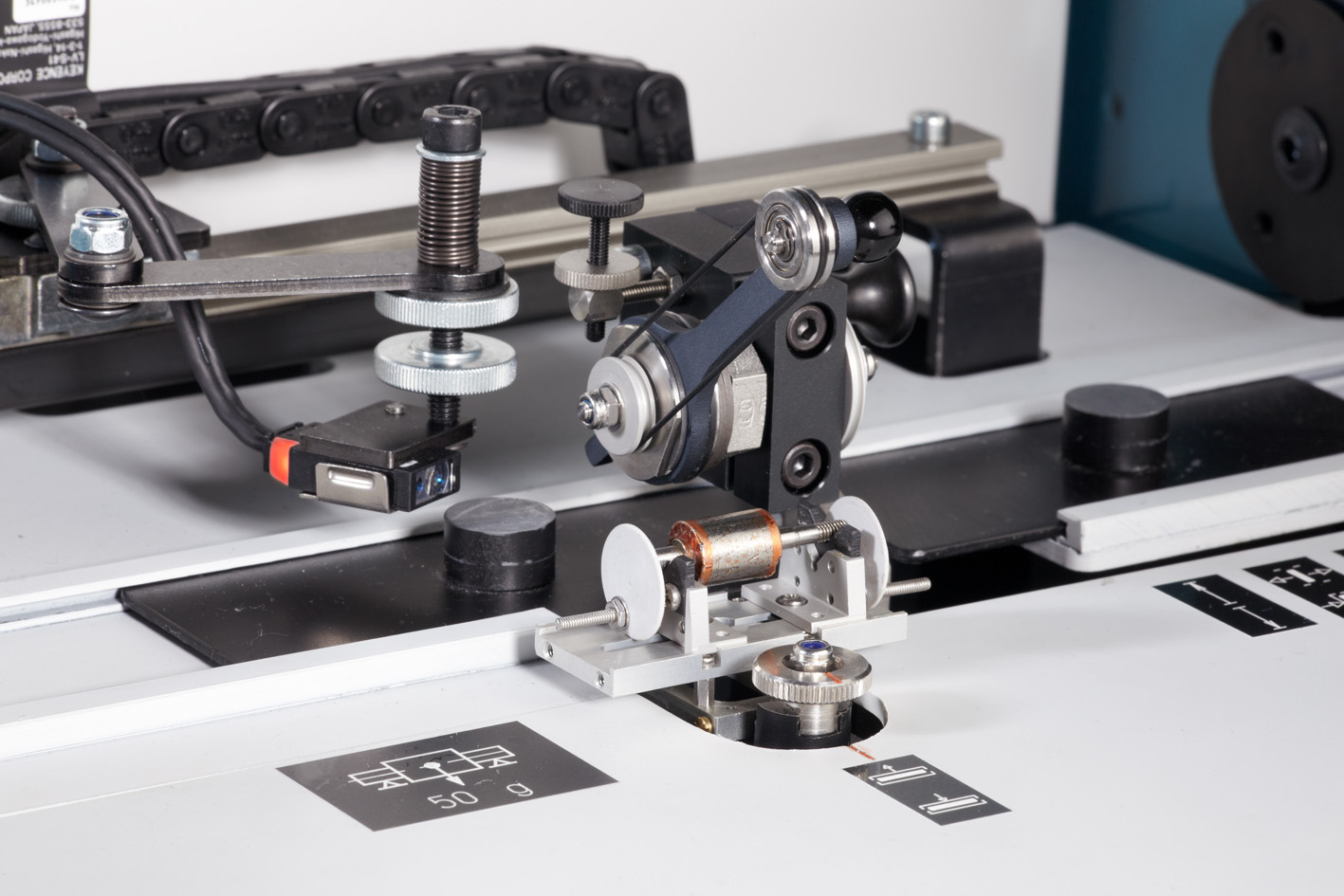

  • The complete workplace consists of the following major components: machine table, mechanical balancing unit with V-blocks, belt drive, measuring instrument and control system
  • The machine can be installed without foundations and without bolts and is immediately ready for operation
  • Measuring device CAB 920 - the high end solution regarding operation, versatility and accuracy
Technical data
Data at a glance    V-Blocks

Rotor
Weight, max.  [g]  50
Diameter, max.  [mm]  30
Journal distance, max  [mm]  45
Journal diameter  [mm]  1 - 6

Maschine
Width 1)  [mm]  602
Depth 1)  [mm]  785
Height 1)  [mm]  925
Total weight  [kg]  135
Power supply    230 V AC, 50 Hz
Belt drive    overhead tangential with round section belt
Drive power  [W]  100
Automatic angle indexing    included
Min. achievable residual unbalance Umar 1)  [gmm/kg]  0,1
Max. sensitivity CAB 920  [gmm]  0.01
3-colour painting     RAL 7035 (light grey), RAL 7024 (graphite grey)
Sound Pressure Level (with class C protection)  [LpA [dB(A)]]  < 60
Measuring devices
    CAB 920 with touch-screen operation

Options
    Protection in accordance with ISO 7475 Class C (protection against parts flying off)
    Test rotor (6,3 g) with test weights
    External interfaces for printers and network (CAB 920)
    Color printer for report print-outs



1) Min. achievable residual unbalance per plane
